Verified Project Case — 2025
Indonesia Industrial Factory – PU-Edge Rock Wool Roof Panels
Project Overview
Project Overview
LIAOHE supplied PU-edge-sealed rock wool roof panels for an industrial factory building in Indonesia in 2025. The project required panels with confirmed fire-retardant rock wool cores, polyurethane edge sealing to protect against moisture ingress, and PVDF coating for long-term corrosion resistance in a tropical environment. Panels were manufactured, quality-checked, and shipped to Semarang port in 13 × 40HQ containers.
Verified Project Data
Verified Project Data
| Country | Indonesia |
|---|---|
| Delivery Port | Semarang |
| Year | 2025 |
| Building Type | Industrial Factory |
| Product | PU-Edge-Sealed Rock Wool Roof Panels |
| Confirmed Panel Area | 9,482.09 m² |
| Loading Plan | 13 × 40HQ containers |
| Coating | PVDF |
| Color | White Grey |
| Packing | Styrofoam pallet + export loading support |
Roof Panel System
Roof Panel System Specification
Panel Dimensions
- Thickness: 50 mm
- Effective width: 1,000 mm (standard)
- Effective width: 500 mm (ridge / eave cut)
- Custom lengths per project layout
Steel Facing
- Outer facing: 0.50 mm steel
- Inner facing: 0.40 mm steel
- Coating: PVDF (polyvinylidene fluoride)
- Color: White Grey
Core & Edge Seal
- Core: Rock wool, 120 kg/m³ density
- Edge: PU (polyurethane) sealed perimeter
- PU edge protects against moisture ingress
- Suitable for tropical climate conditions
Panel Production
Panel Production & Export Supply
Installation photographs will be displayed here. Please upload the project installation photos to the media library and update this section.

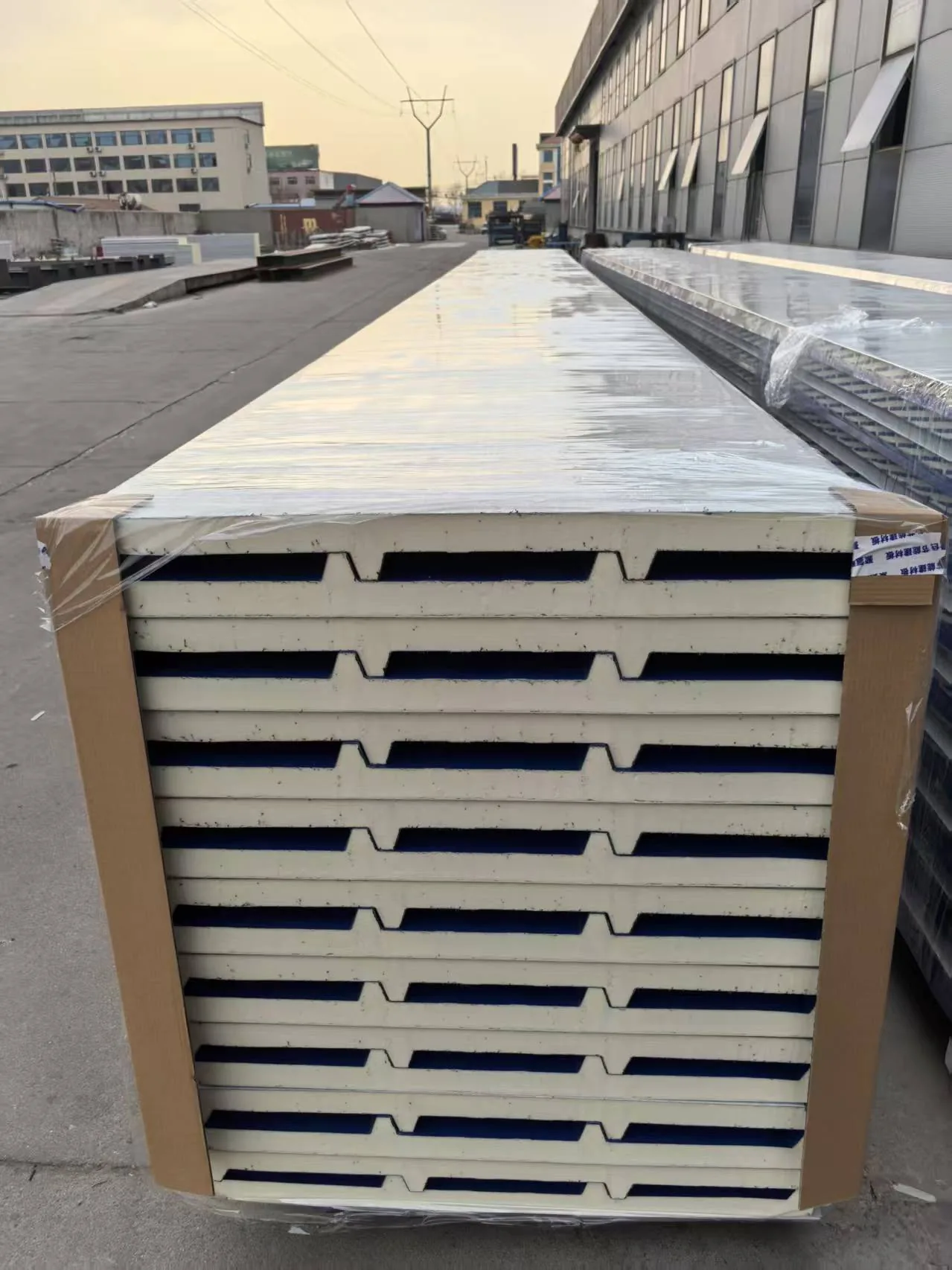

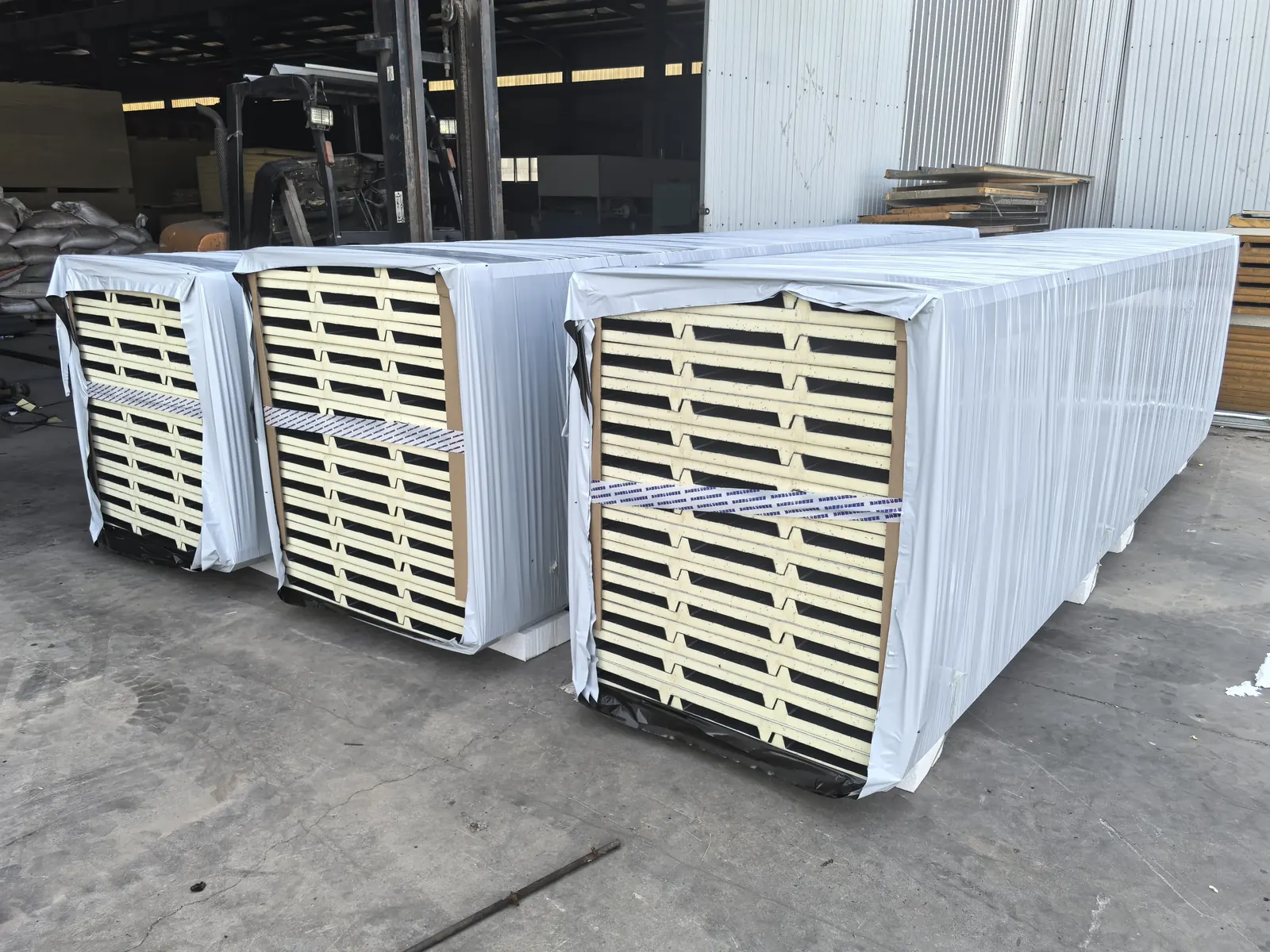

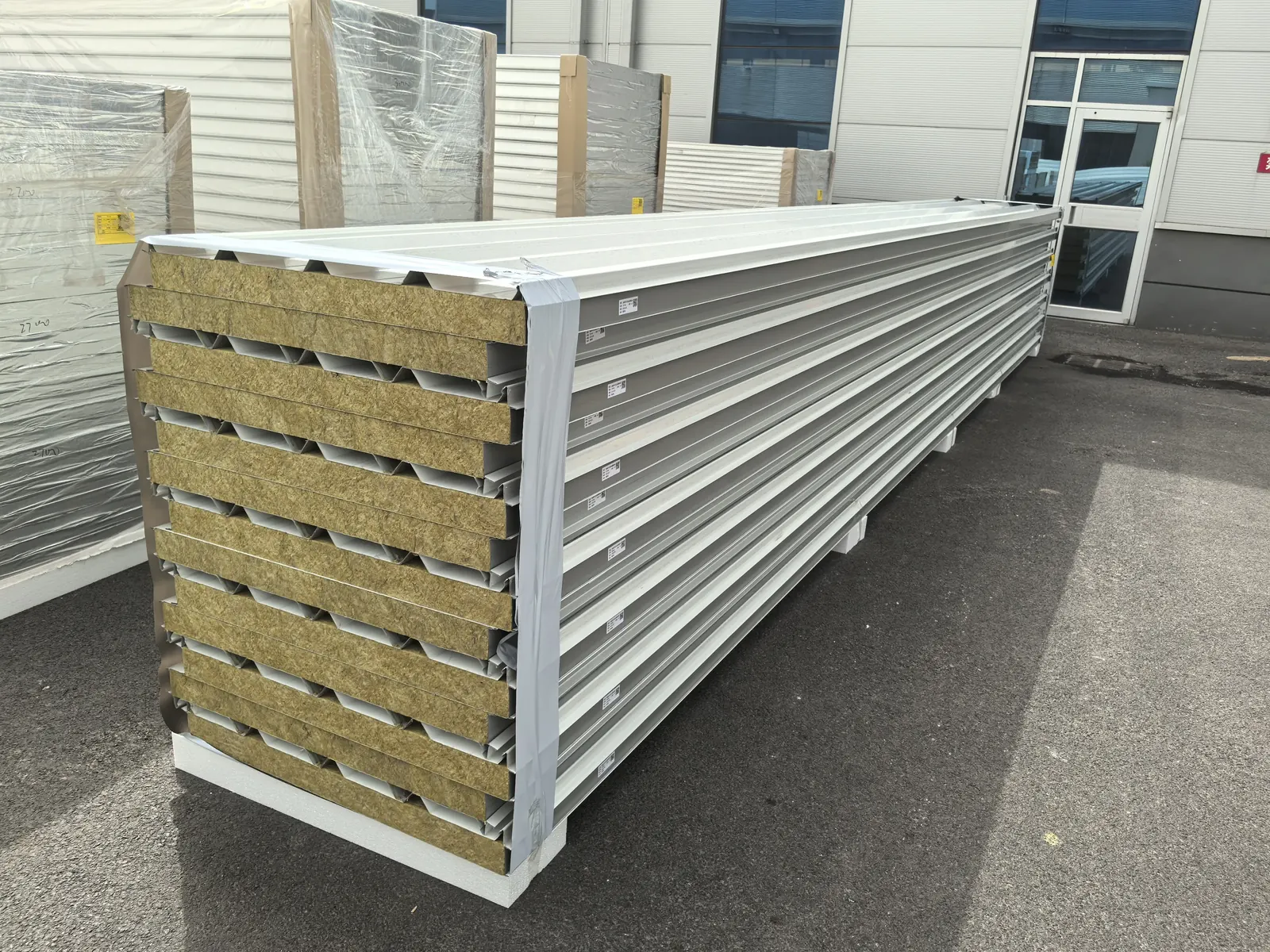

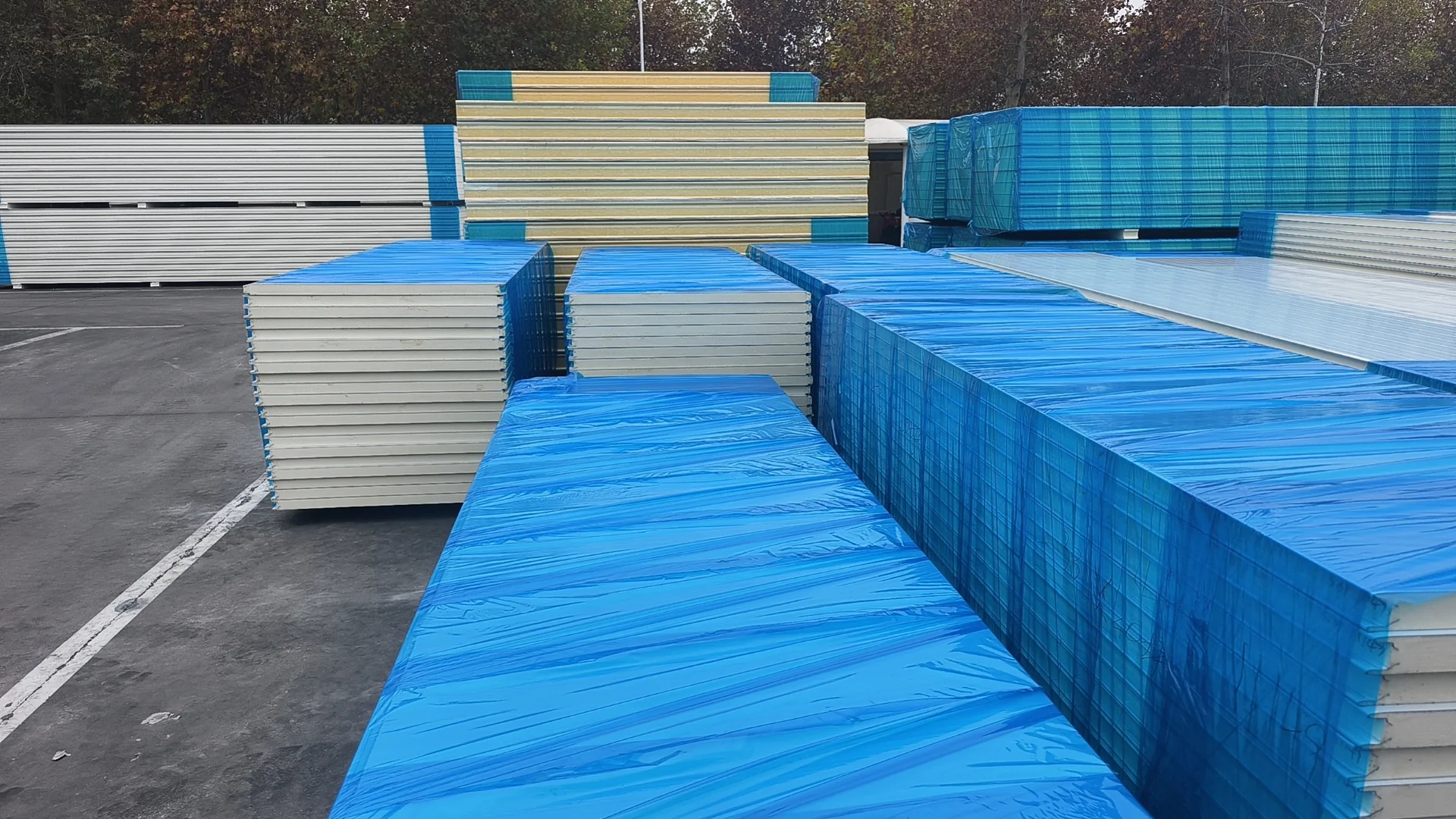

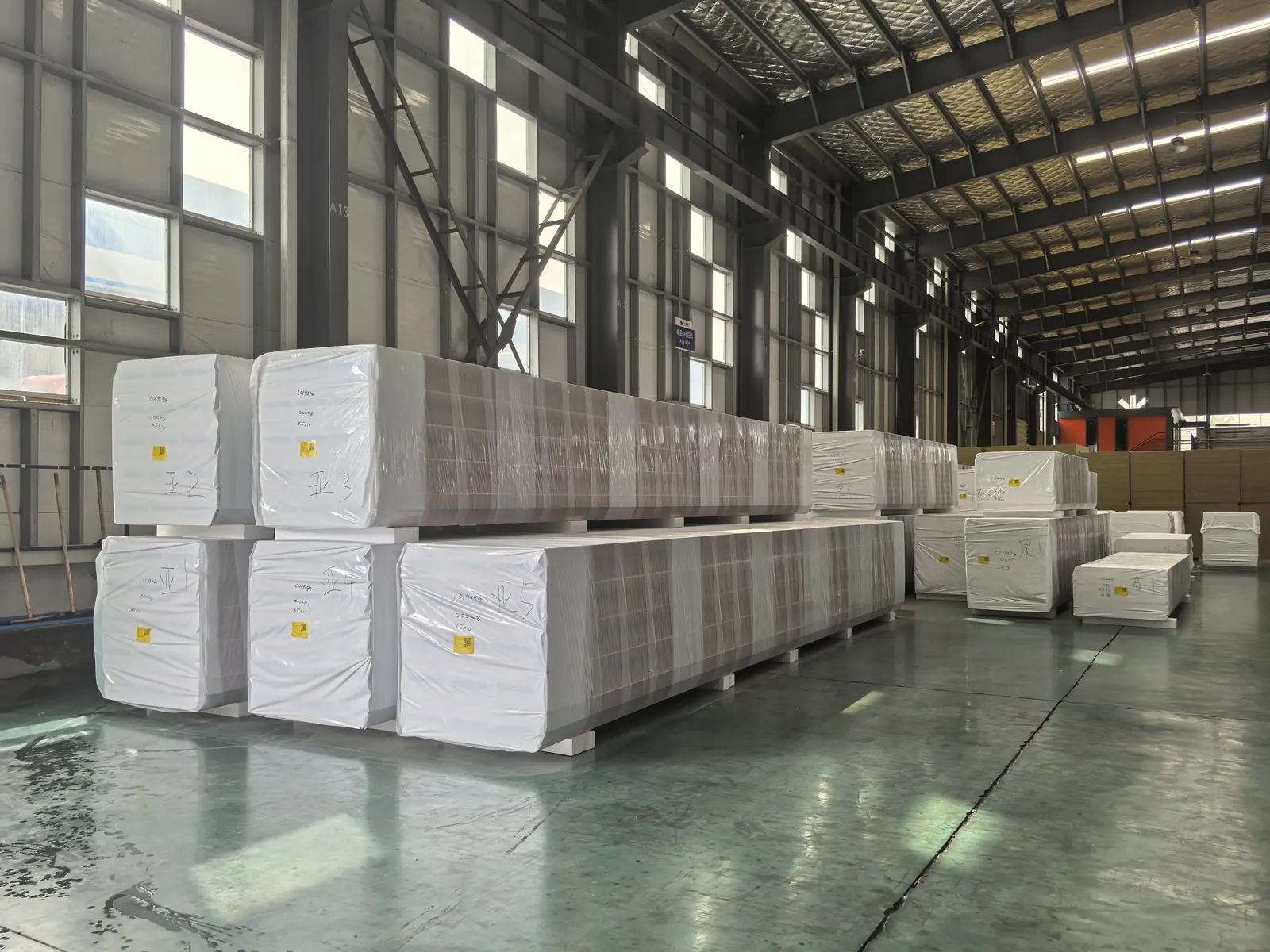

Packing Protection
Packing Protection
All panels were packed on Styrofoam pallets with export-grade protection to prevent surface scratching and moisture exposure during ocean freight to Semarang.
Container Loading

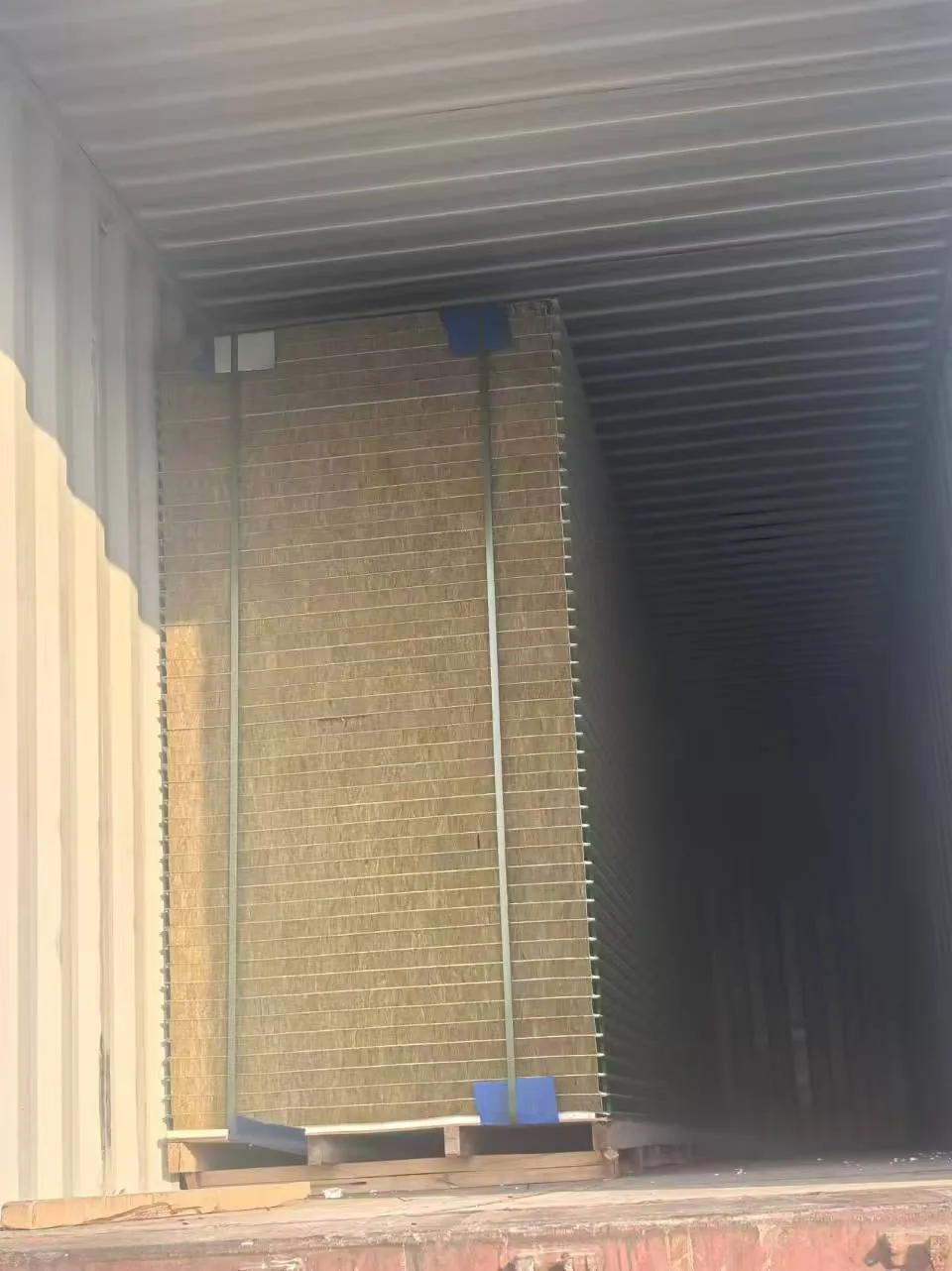

Container Loading
The shipment required 13 × 40HQ containers. Panels were loaded flat with interleaved protective materials to prevent steel facing damage during transit. Loading was coordinated by the LIAOHE export team.
Quality Coordination
Quality Coordination
Pre-Production
- Rock wool density confirmed at 120 kg/m³
- Steel facing thickness verified (0.50 / 0.40 mm)
- PVDF coating batch checked
- PU edge formulation and cure process approved
Production & Inspection
- Panel length tolerance: ±2 mm
- Width and squareness checked per batch
- Surface coating adhesion inspected
- Edge seal continuity confirmed
Export & Logistics
- Panels bundled and protected for ocean freight
- Styrofoam pallet packing per export standard
- 13 × 40HQ containers loaded at factory
- Shipped to Semarang port, Indonesia
