Cold Room Panels for Freezer, Chiller and Food Storage Projects
LIAOHE manufactures PU and PIR cold room panels on an Italian OMS production line — supporting panels up to 250 mm for freezer rooms, chiller rooms, food processing and refrigerated warehouses worldwide.
Typical Cold Room Panel Specification
Thickness and core type reviewed per project temperature, room size and application.
Cold room panel parameters for project review.
Final specification confirmed per room temperature, room size, joint type and project standard.
Recommended panel thickness by room temperature.
| Room Temperature | Recommended Thickness | Typical Application |
|---|---|---|
| +2°C to +8°C (chiller) | 75–100 mm | Fruit, vegetable, dairy, drinks |
| 0°C to −5°C (cold storage) | 100–120 mm | General food storage |
| −18°C to −22°C (freezer) | 120–150 mm | Meat, seafood, frozen food |
| −25°C to −35°C (deep freeze) | 150–200 mm | Long-term frozen storage |
| −40°C (ultra-low temp) | 200–250 mm | Pharmaceutical, speciality storage |
Where cold room panels are used.
Panel thickness and details matched to required temperature, room size and application.

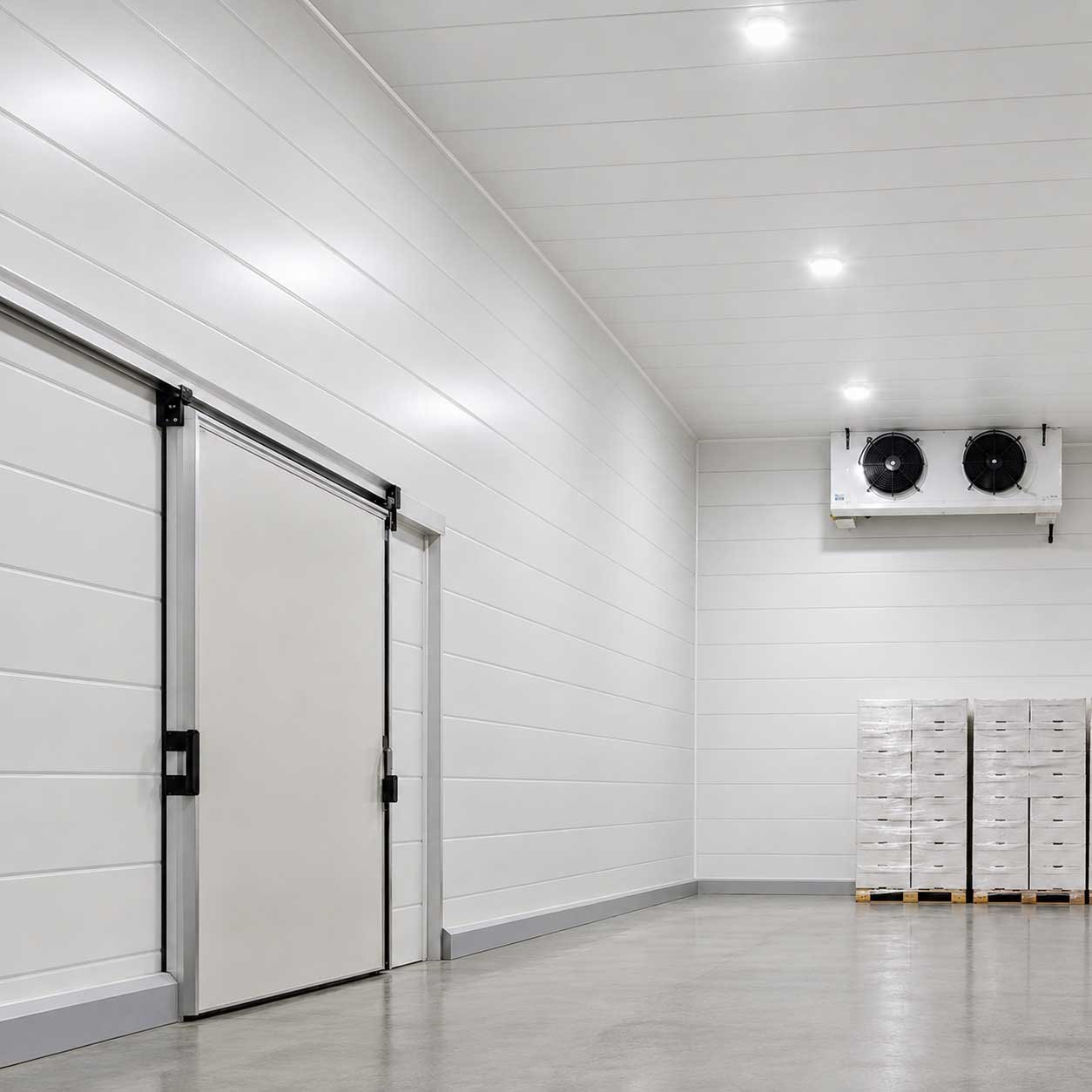

Freezer rooms
Insulated wall and ceiling systems for low-temperature frozen storage.

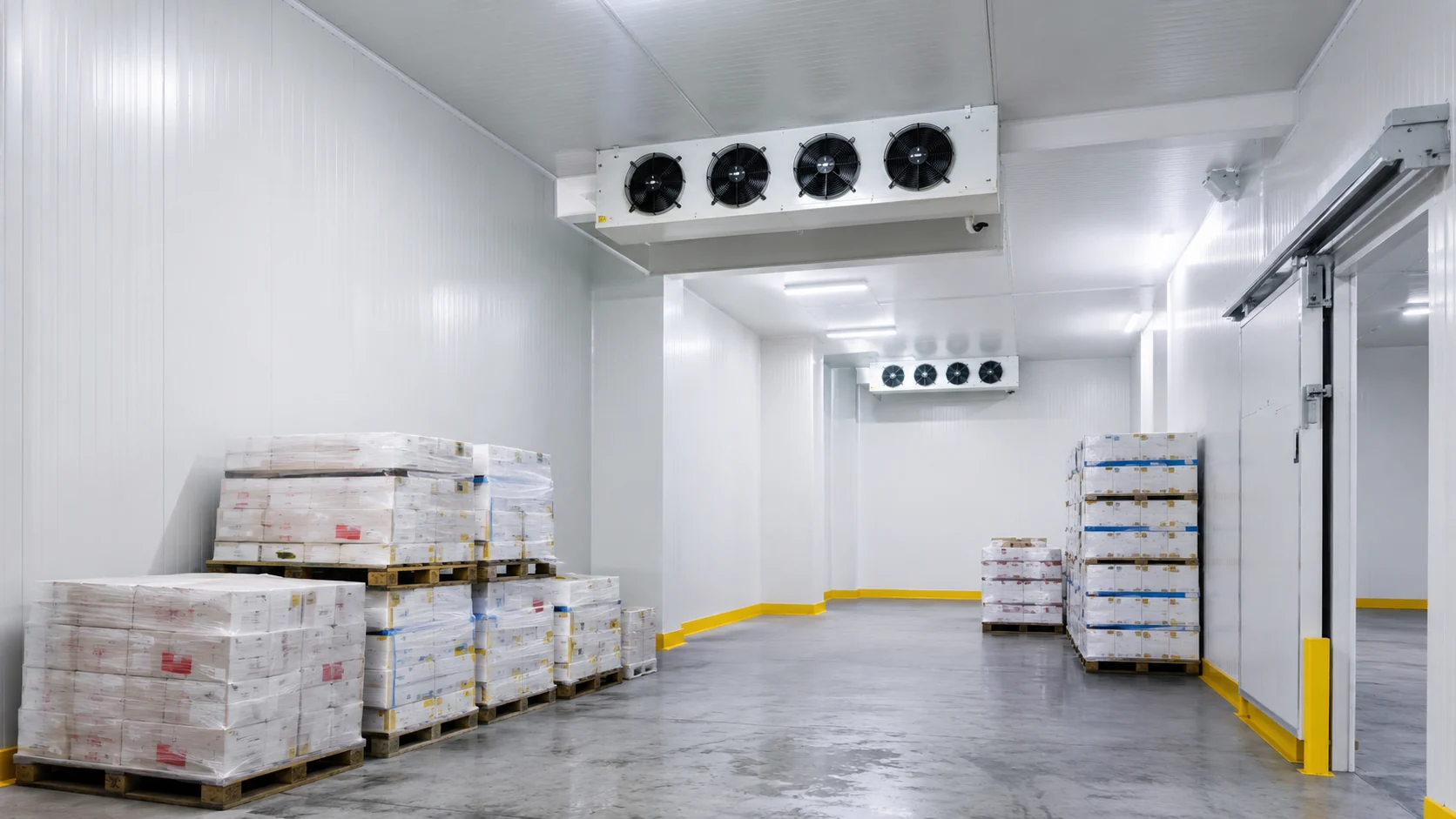

Chiller rooms
Panel thickness reviewed according to operating temperature and room configuration.
Food storage facilities
Insulated systems for food, meat, seafood and agricultural product storage.

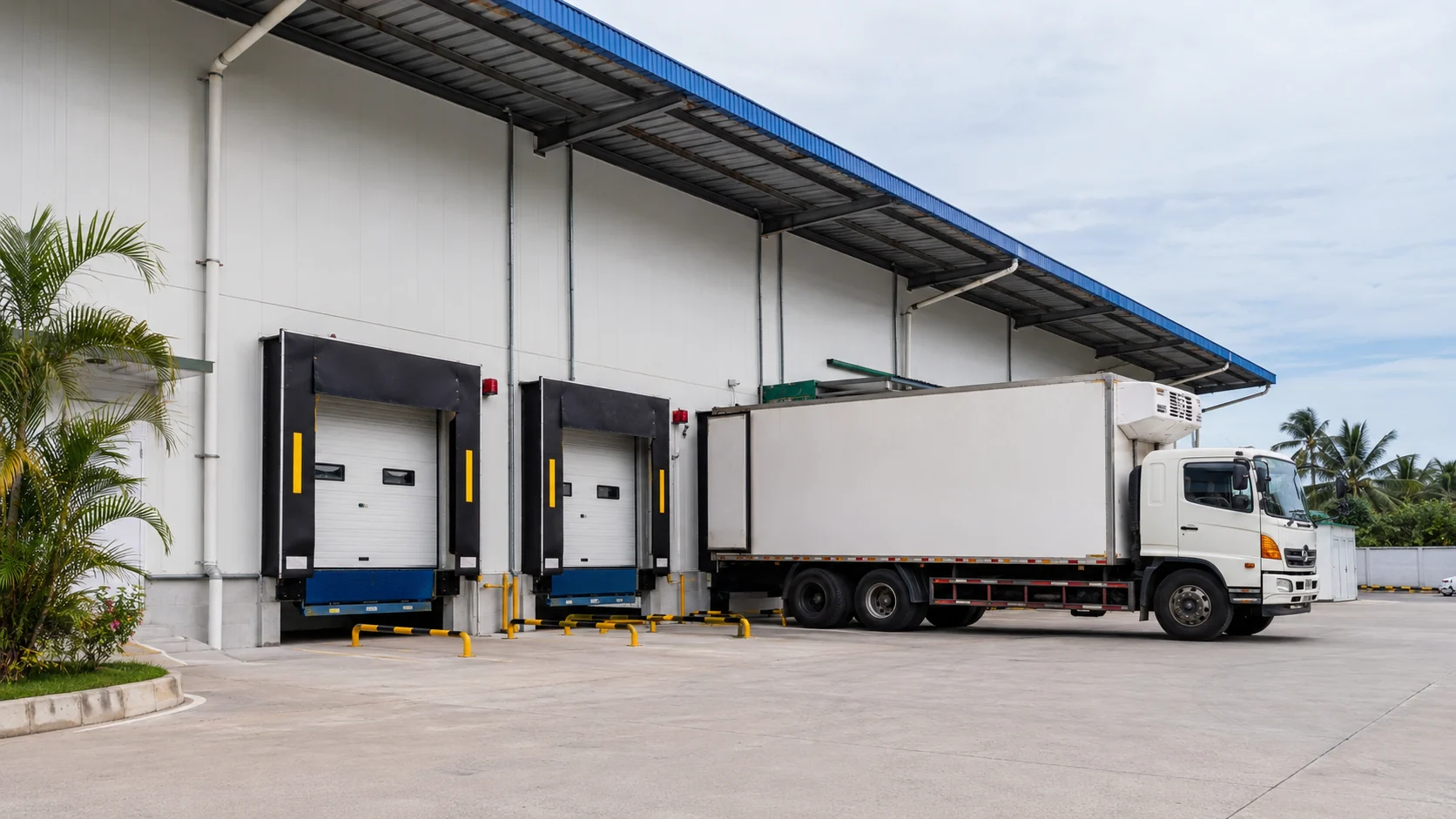

Cold chain logistics
Panel supply for refrigerated logistics warehouses and distribution centers.
Pharmaceutical storage
Temperature-controlled panel options for medical and pharmaceutical storage.
Food processing facilities
Insulated systems for temperature-controlled food processing and packing areas.
LIAOHE cold room panel manufacturing advantages.
Cold Room Panels FAQ
What core material is used for cold room panels?
Cold room panels may use PU or PIR core material. Final core selection depends on operating temperature, fire-performance documentation, panel thickness, project budget, local requirements and approved technical data.
What is the maximum thickness available?
LIAOHE’s cold room production line supports panel thickness up to 250 mm, suitable for blast-freezer and deep-freeze applications.
How do I select the right thickness for my cold room?
Panel thickness recommendations are indicative. Final selection must be verified according to operating temperature, ambient climate, room dimensions, structural span, wind load, refrigeration load, airtightness and applicable project requirements. Send operating temperature, ambient climate, room dimensions and door-opening frequency for project-specific panel selection.
What joint system is available?
Cam-lock and tongue-and-groove joint systems are both available. Cam-lock is recommended for rooms requiring fast assembly or disassembly. Both provide continuous insulated joints for airtight cold room enclosures.
Can panels be customized for my project?
Yes. Panel thickness, steel facing, coating, color, length, joint type and packing method can all be customized based on project drawings and room layout.
What information is needed for a cold room quotation?
Please provide: room operating temperature, room dimensions or drawings, panel thickness if specified, quantity (m²), project country and destination port.
Send your cold room temperature, dimensions and project details.
Provide operating temperature, room size or drawings, panel thickness if known, quantity, project country and destination port. Lower heat transfer through the building envelope can support refrigeration efficiency. Actual energy consumption and economic performance depend on panel thickness, operating temperature, ambient climate, airtightness, door-opening frequency, refrigeration equipment efficiency, operating hours, local energy prices and project design.
