Insulated Roof Panels for Industrial Buildings and Warehouses
Insulated roof panels combine a profiled external metal sheet, insulation core and inner steel facing into one roof component. They help reduce installation layers, improve roof insulation and provide a clean underside for industrial and warehouse buildings.
How This Panel Is Used
Use roof sandwich panels when the project needs large-area roof installation, weather protection, insulation and a coordinated roof profile rather than separate insulation and sheet layers.
Project fit
Use roof sandwich panels when the project needs large-area roof installation, weather protection, insulation and a coordinated roof profile rather than separate insulation and sheet layers.
Core material
PU, PIR, rock wool or EPS insulation core
Export support
Panels can be supplied with customized length, surface color, packing method and shipment documents according to order requirements.

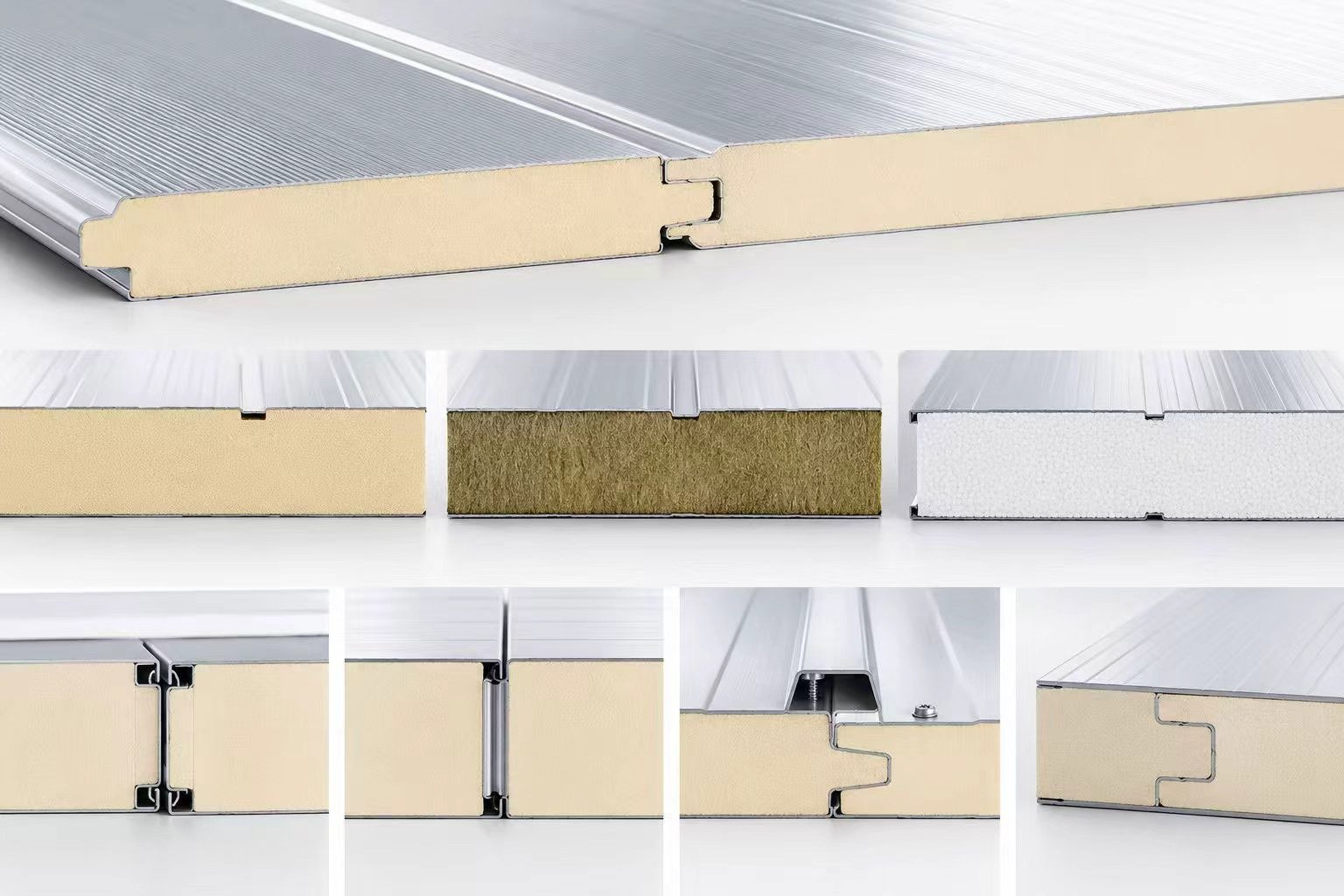

Panel Structure and Materials
The panel is built as a composite system: outside steel facing, insulation core, inside steel facing and a connection detail selected for the building use. This structure helps buyers coordinate insulation, strength, appearance, installation speed and maintenance in one product.
For export projects, please confirm core material, panel thickness, steel sheet thickness, coating, color, length, quantity, joint type and packing requirements before production.
| Core Material | PU, PIR, rock wool or EPS insulation core |
|---|---|
| Panel Thickness | 50 mm to 150 mm, project dependent |
| Effective Width | Customized by roof profile and system |
| Steel Facing | Profiled color-coated steel facing |
| Joint / Connection | Roof side overlap with project fastening detail |
| Length | Customized according to project drawings and container loading requirements |
| Surface Color | RAL colors and project colors are available according to order requirements |
| Typical Applications | Factory and workshop roofs, Warehouse and logistics center roofs, Agricultural and livestock buildings, Commercial roof systems, Prefabricated building roofs, Cold storage and food facility roofs |
Typical Applications
- Factory and workshop roofs
- Warehouse and logistics center roofs
- Agricultural and livestock buildings
- Commercial roof systems
- Prefabricated building roofs
- Cold storage and food facility roofs
How to Choose Specifications
- Confirm roof slope, purlin spacing, wind load, snow load and drainage direction.
- Select PIR or PU for strong insulation; select rock wool when fire requirements dominate.
- Check overlap direction, fastener specification and sealing tape requirements.
- Use suitable coating for coastal, humid or industrial environments.
Related Pages
These pages help compare nearby product choices and common applications.
Frequently Asked Questions
What information should I send before requesting this panel?
Please send product type, application, panel thickness, steel sheet thickness, panel length, quantity or total area, color, destination port and drawings if available.
Can the panel size and color be customized?
Yes. Length, color, steel facing, coating and thickness can be customized according to project requirements and order conditions.
How should I choose the right thickness?
Thickness depends on application, temperature requirement, climate, span, fire requirement and budget. For cold rooms and controlled environments, target temperature and door frequency are especially important.
Can LIAOHE provide documents for project approval?
LIAOHE can provide catalogs, product information, drawings or available technical documents according to the selected product and project requirements.
Request a Project Quotation
Send your product type, panel thickness, steel sheet thickness, quantity or total area, panel length, color, destination port and project drawings. LIAOHE will recommend a practical specification and prepare an export quotation.
